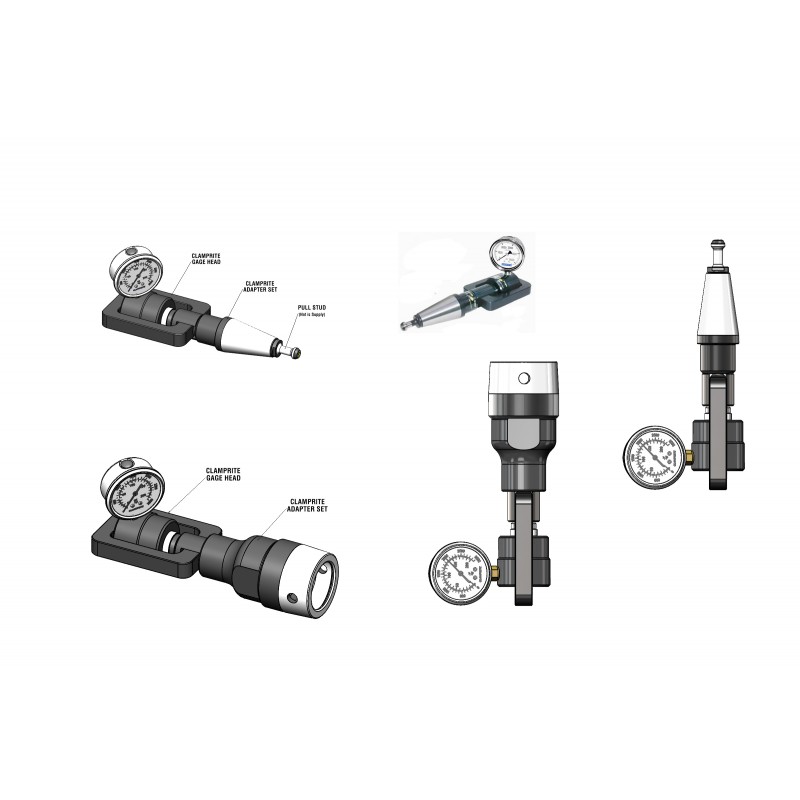

Clamprite Gage
MAS BT (ISO 7388-2)
DIN 69871(ISO 7388-1)
CAT ANSI / ASME B5.50
HSK ISO 12164-1(DIN 69893-1
All Machine Tool Builders Around the Globe
(All dimensions are in mm)
|
ORDERING CODE |
SPINDLES TO CHECK |
FORCE RANGE |
ADD ON SPINDLES |
||
|
Kg-f |
lb-f |
KN |
|||
|
47 CG14K 30B |
BT30 |
0-1400 |
0-3000 |
0-14 |
HSK32 HSK40 HSK50 |
|
47 CG14K 40B |
BT40 |
||||
|
47 CG14K 40S |
SK40 |
||||
|
47 CG14K 30B 40B |
BT30, BT40 |
||||
|
47 CG14K 30B 40B 40S |
BT30, BT40, SK40 |
||||
|
47 CG24K 50BS |
BT50, SK50 |
0-2400 |
0-5000 |
0-24 |
HSK63 |
|
47 CG24K 40B 50BS |
BT40, BT50, SK50 |
||||
|
47 CG45K 5OBS |
BT50, SK50 |
0-4500 |
0-10000 |
0-45 |
HSK80 |
|
47 CG45K 40B 50BS |
BT40, BT50, SK50 |
||||
|
47 CG70K A100H |
HSK A100 |
0-7000 |
0-15000 |
0-70 |
|
Draw-Bar Force Observed Range (Manufacturer Specification shall prevail )
|
SPINDLE SPECIFICATION |
SIZE |
DRAWBAR FORCE RANGE |
|||
|
Kg-f |
lb-f |
KN |
|||
|
BT |
MAS BT (ISO 7388-2) |
30 |
200-400 |
450-900 |
2-4 |
|
SK |
DIN 69871(ISO 7388-1) |
40 |
600-1200 |
1300-2600 |
60-120 |
|
CAT |
CAT ANSI / ASME B5.50 |
50 |
1200-3200 |
2600-7000 |
120-320 |
Draw-Bar Force As Recommended in the ISO Standard. (Manufacturer Specification shall prevail)
|
SPINDLE SPECIFICATION |
SIZE |
DRAWBAR FORCE RANGE |
|||
|
Kg-f |
lb-f |
KN |
|||
|
HSK |
ISO 12164-1 (DIN 69893-1) |
32 |
500 |
1100 |
5 |
|
40 |
680 |
1500 |
6.8 |
||
|
50 |
1100 |
2400 |
11 |
||
|
63 |
1800 |
4000 |
18 |
||
|
80 |
2800 |
6200 |
28 |
||
|
100 |
4500 |
10000 |
45 |
||
|
125 |
7000 |
15000 |
70 |
||
