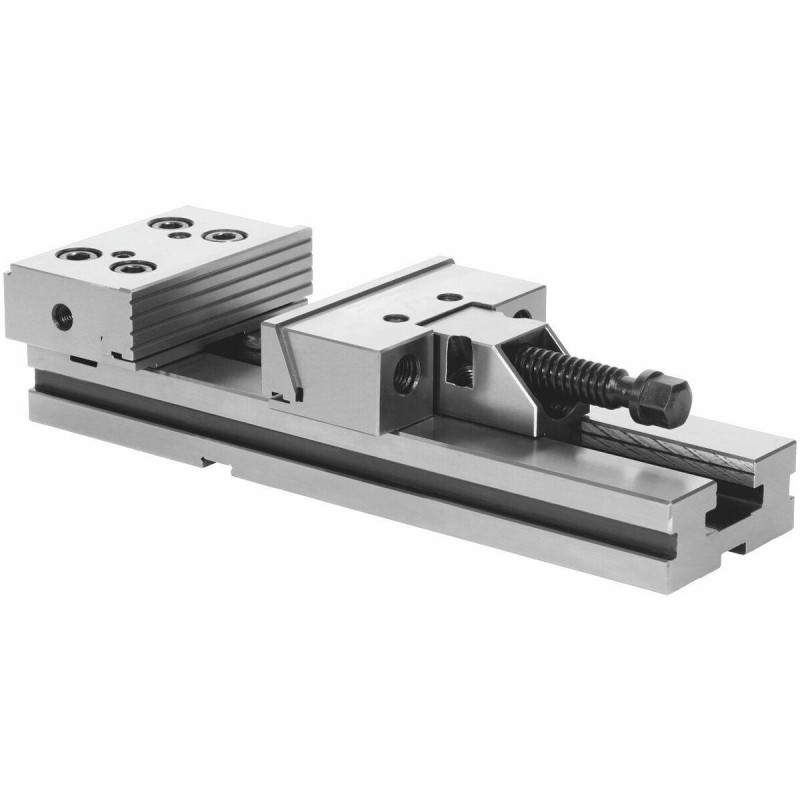

Holex Vise 300mm
Modular vice, Jaw width A: 150/3mm
Version:
Supplied with:
Component backstop, 2 T-nuts similar to No. 362160 size 18/16, 1 clamping wrench, 1 L-wrench for hexagon socket screws, 4 clamping claws.
Note:
See No. 362160 for other T-nuts.
Weight: 37.5 kg
Overall length L: 520 mm
Clamping range b: 300 mm
Base body height G: 50 mm
Jaw height C: 50 mm
Longitudinal tenon slot l: 16 mm
Technical description
| Weight | 37.5 kg |
| Jaw height C | 50 mm |
| Base body height G | 50 mm |
| Overall length L | 520 mm |
| Jaw width A | 150 mm |
| Clamping range b | 300 mm |
| Colour code for suitable accessories | Modular HOLEX 150 |
| Longitudinal tenon slot l | 16mm |
| Transverse tenon slot n | 16mm |
| Type of product | Machine vice |
Accessories
| Smooth front jaw, soft (piece) for jaw width 150 mm | 362148 150 |
| Pair of T-nuts T-slot dimension B / keyway 14/16 mm | 362160 14/16 |
| Square top jaw (piece) for jaw width 150 mm | 362132 150 |
| Pair of T-nuts T-slot dimension B / keyway 20/16 mm | 362160 20/16 |
| Pair of T-nuts T-slot dimension B / keyway 18/16 mm | 362160 18/16 |
| Pair of T-nuts T-slot dimension B / keyway 12/16 mm | 362160 12/16 |
| Longitudinally serrated front jaw (piece) for jaw width 150 mm |
362146 150 |
| Prismatic jaw (piece) for jaw width 150 mm | 362127 150 |
| Smooth front jaw, hard (piece) for jaw width 150 mm | 362147 150 |
| Pair of T-nuts T-slot dimension B / keyway 16/16 mm | 362160 16/16 |
